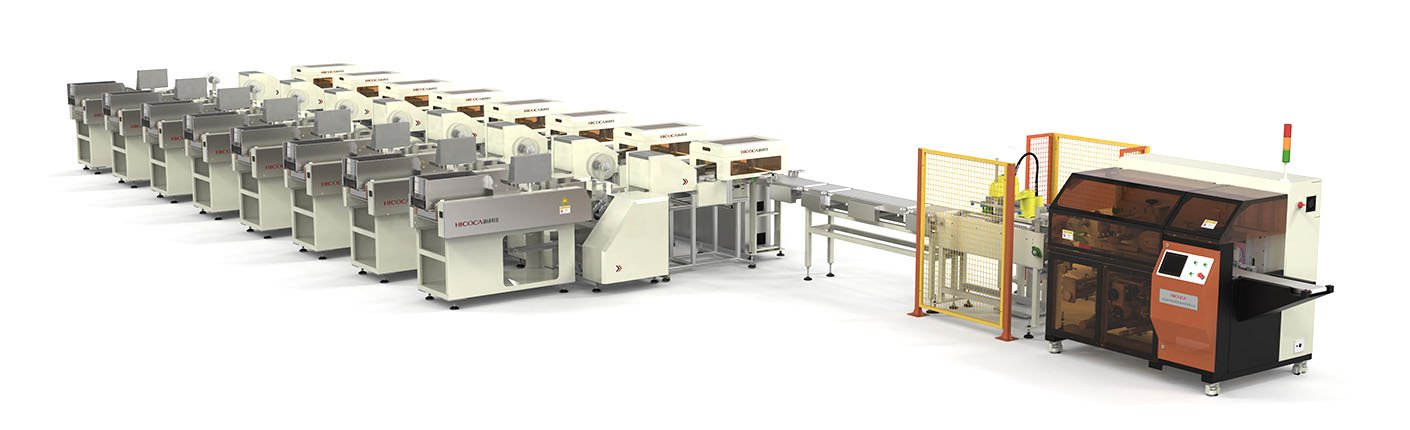

Multi-Head Weighing Inline Stand-up Pouch Bundling Line (with Automatic Tray Making and Insertion)
Short Description:
Category:Intelligent Packaging Equipment
Product Model:ZJBJJK6/30
Overview:This equipment is used for bundling and packaging long, thin food products such as loose noodles, spaghetti, and rice noodles (180mm to 260mm in length) in plastic bundles. The equipment automatically performs the entire bundling and packaging process, including weighing, bundling, lifting, feeding, sorting, arranging, grouping, conveying, film wrapping, and sealing.
Applicable Products:Dried noodles, pasta, rice noodles
Product Description
1. This stand-up pouch packaging machine is a product jointly developed by our company and a Dutch design team. It has multiple national invention patents and international patents, representing state-of-the-art technology in China and is a key product for leading enterprises in the industry.
2. The packaging speed of the stand-up pouch machine is 40% faster than traditional flat-bottomed pouch packaging, reaching up to 50 pouches per minute. For the same product, stand-up pouch packaging offers a profit increase of over 30% compared to traditional flat-bottomed pouches.
3. The stand-up pouch weighing and packaging production line possesses all the advantages of traditional flat-bottomed pouch packaging lines, with higher precision, longer lifespan, and a more premium positioning, thus enhancing brand competitiveness.
4. It meets the market trend towards high-end, precise packaging and the demands of discerning consumers, and is applicable to a wide range of products, including snack foods.
5. The production line can be configured with different numbers of weighing heads (from four to twelve) according to production capacity requirements.
Product Parameters
| Rated Voltage (V) | Frequency (Hz) | Rated Power (Kw) | Gas Consumption (L/Min) | Measurement Accuracy (G) | Packaging Specifications | Packaging Scope（g/bag） | Packaging Speed(bags/min) | Tying Speed（扎/min） | Bundling Type | Device Dimensions（mm） |
| AC22 | 50 | 13 | 3 | 200g ～500g：±2.0g以内96% 500g ～1000g：±3.0g以内96% | 200-250g/bunch，4-5bunch/bag 75-150g/bunch，4-5bunch/bag | 360g～1000g | 30～50 The price varies depending on the quality and quantity of the packaging materials | 10～25 | Single-strand bundling, double-strand bundling | 15000×4600×1750(For example, using the number six) |

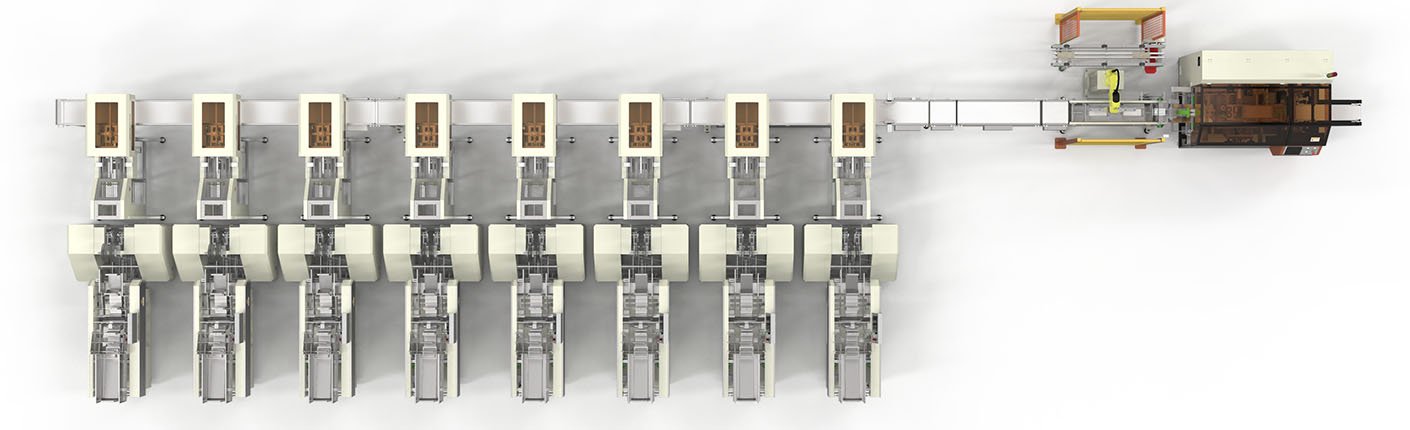

Product Layout
Features
Core Single-Board Design Overview

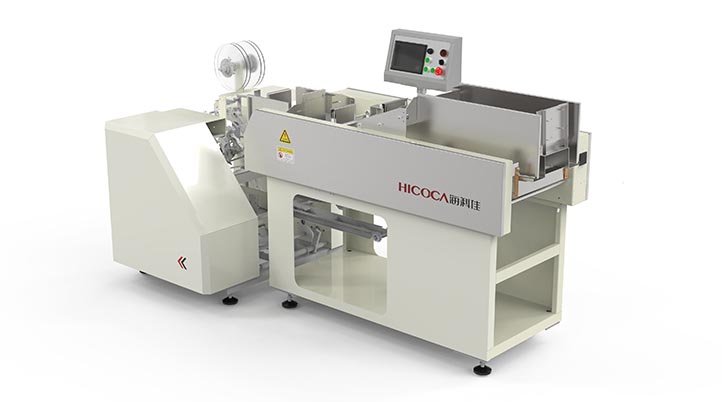

Weighing And Strapping Machine
The weighing machine manufactured by HICOCA is the first domestically produced weighing equipment for noodles to receive quality certification. It utilizes a cantilever beam sensor and a two-stage weighing system. The first stage (rough weighing) provides an initial weight estimate, while the second stage (precise weighing) ensures accurate product dispensing. The weighing accuracy is ±1g for a range of 100–250g; ±2g for 200–500g; and ±3g for 500–1000g. The bundling machine uses a universal gripping mechanism, capable of bundling various noodle weights without the need for frequent gripper replacement. The double-heat sealing technology ensures a short, clean seal, minimizing loose or broken bundles.

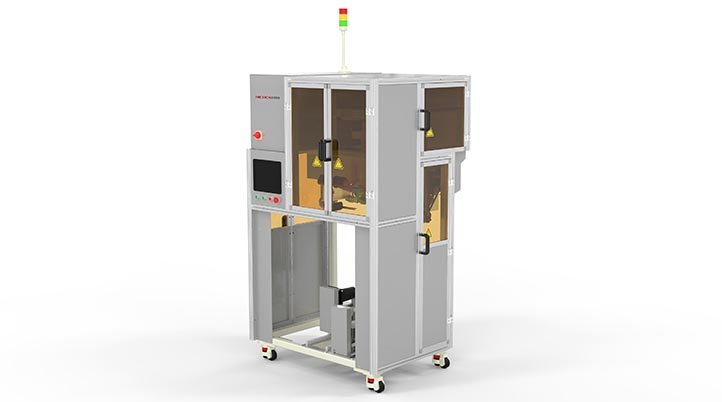

Automatic Casting And Molding

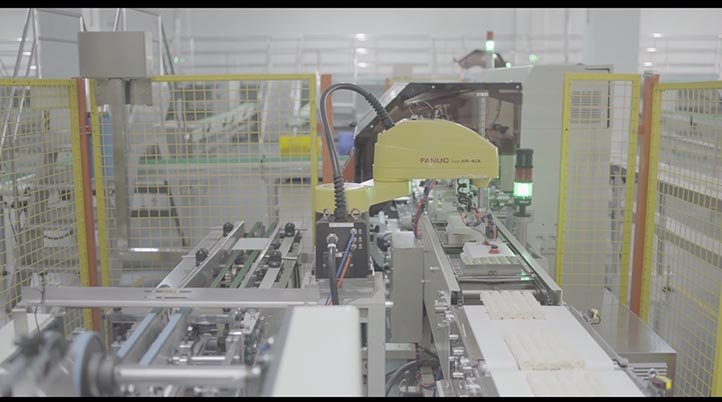

Tray-forming and product-loading robot: The first of its kind in the industry. Using a U-shaped paperboard tray in the packaging process results in better 3D shape formation and a more attractive overall package appearance.

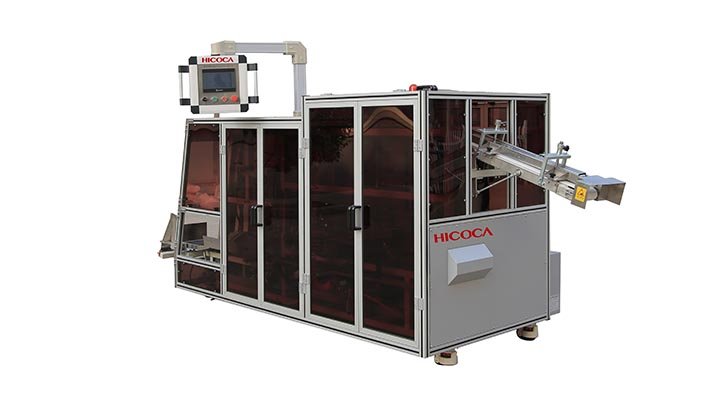

Packaging Machine
1. Automatic roll-film packaging machine allows for easy switching between different product sizes (400-1000g), reducing labor costs and packaging material waste;
2. Reciprocating horizontal sealing: The reciprocating sealing knife design ensures a neat and aesthetically pleasing seal;
3. Electronic safety guard prevents accidental cuts, protecting both equipment and personnel;
4. Empty bag detection function effectively prevents empty bags from being produced, saving on packaging material costs;
5. Single or dual weighing systems can be selected based on production capacity.

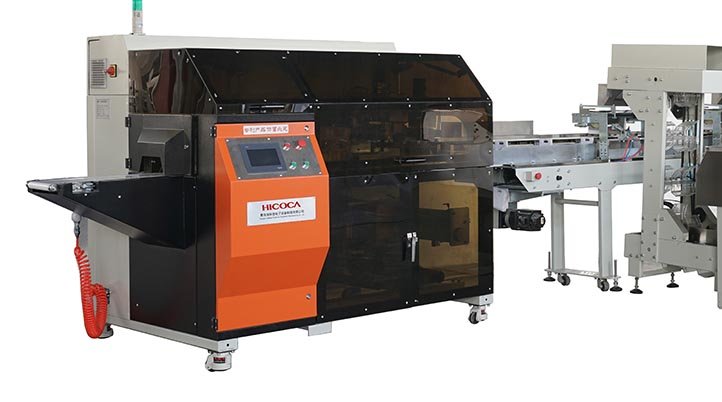

Flat Bag Packaging Machine
Product Highlights:
1. Adopts international packaging design concepts and is optimized for the characteristics of food product packaging, representing state-of-the-art technology in China;
2. Features a unique single-station continuous product feeding mechanism, compact in size, with a simple and stable structure, enabling high-speed continuous product feeding and sorting, and offering easy operation and good compatibility;
3. Utilizes a scissor-type sealing mechanism for excellent sealing performance. The inverted output mechanism automatically pushes the packaged products onto the discharge tray, facilitating operation and inspection;
4. One unit of this equipment is required per packaging production line, managed by one operator, with a daily output of approximately 40 tons, saving two labor positions.
Flat Bag Sealing Machine
This sealing machine for flat-bottomed bags fills a gap in the production line, offering stable operation, high sealing efficiency, and direct integration with the conveyor belt for automated packaging and palletizing, truly realizing intelligent production. Each packaging production line requires only one operator to manage the equipment, achieving a daily output of approximately 40 tons and saving two labor positions.

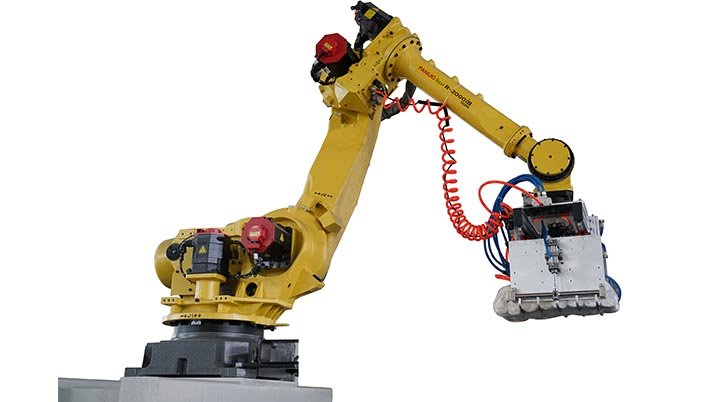

Palletizing Robot
Palletizing robots have a small footprint and are highly maneuverable; they offer high palletizing accuracy, stable operation, low failure rates, and are robust and durable; their flexible design allows them to simultaneously palletize products from two or more production lines; and they meet the palletizing needs for various products such as cardboard boxes, plastic drums, metal drums, woven bags, and plastic crates.
