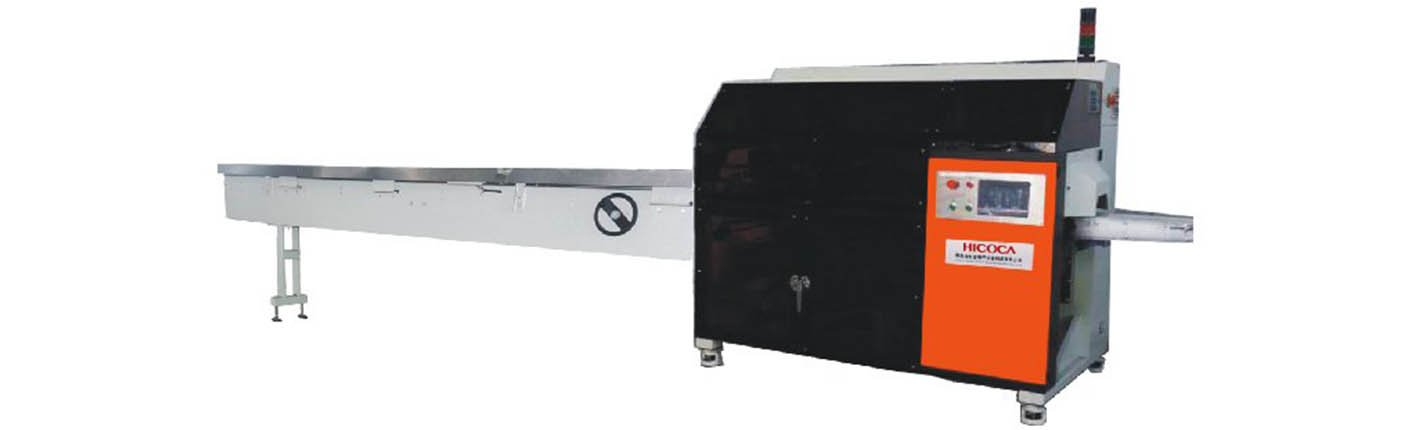

Bottom-fed Film Automatic 3D Bag Packaging Machine
Usage Environment Conditions
1 Site Requirements: Indoor use; the floor must be level, free from vibration and unevenness.
2 Floor Surface Requirements: Must be a hard, non-conductive floor surface (e.g., concrete, tiles, etc.).
3 Ambient Temperature: -5°C to 40°C
4 Relative Humidity: <75% RH, no condensation
5 Dust: No conductive dust
6 Gases: No flammable or explosive substances or gases; no corrosive gases that severely damage metal
7 Altitude: ≤ 1000 meters
8 Grounding Requirements: Independent, safe, and reliable grounding system
9 Power Supply Requirements: Stable power supply; voltage fluctuation should not exceed ±10%
10 Other Requirements: Measures must be taken to prevent rodents (such as rats) from entering the area.
Product Parameters
| Voltage | Frequency | Packaging Speed | Packaging Dimensions L*W*H | Device Dimensions |
|---|---|---|---|---|
| AC 220V | 50~60Hz | 20~160bags/min | （80~500）*（70~260）*（20~65）mm | 6000*1500*1700mm |
