Product Description

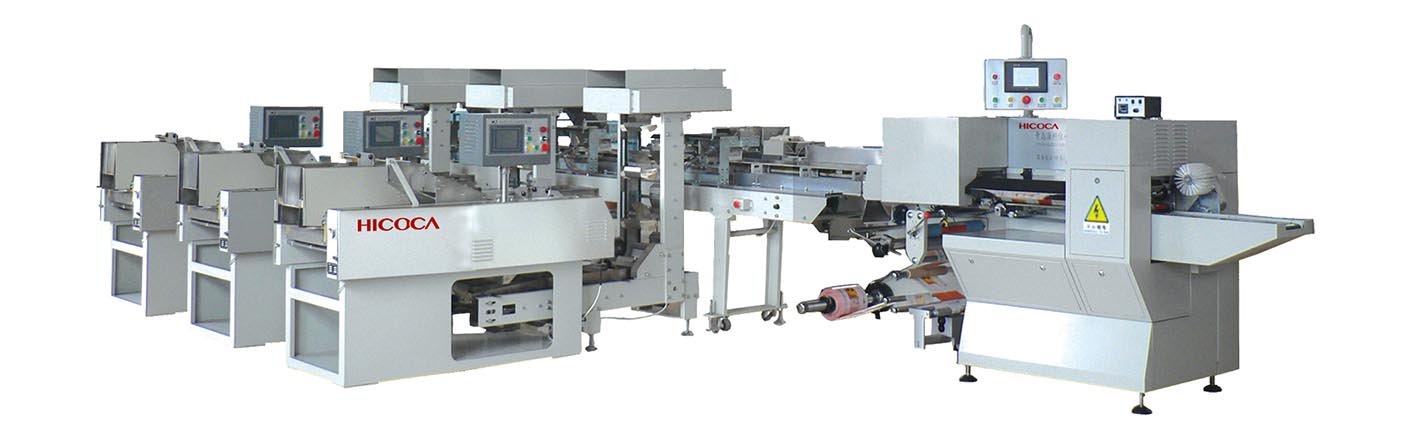

HaiKeJia’s patented product features a round, sealed packaging design, which facilitates the automation of processes such as sorting, packing, bagging, and storage/transportation of products like noodles, minimizing damage and breakage.
High-speed motion controller and high-precision servo drive system ensure greater accuracy, stability, and durability in the packaging process.
Reduces labor and packaging costs; one operator can manage the machine, achieving a daily output of 36-48 tons.
The weighing system can be configured with one, two, or three weighing stations, depending on production capacity requirements.
Product Parameters
| Rated Voltage |
Frequency |
Rated Power |
Gas Consumption |
Packaging Speed |
Packaging Scope |
Device Dimensions L*W*H |
| AC220V |
50～60Hz |
5kW |
4L/min |
30-60bags/min |
200–1000g ±3.0g; Pass rate ≥96% |
6050x3200x1550 mm |
Core Single-Board Design Overview

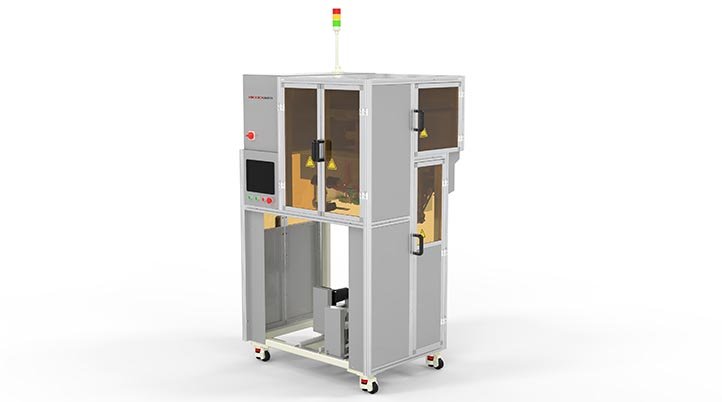

Weighing Machine
The weighing machine manufactured by HICOCA is the first domestically produced noodle weighing equipment to receive quality certification. It utilizes a cantilever beam sensor and a two-stage weighing system. The first stage (rough weighing) provides an initial weight estimate, while the second stage (precise weighing) ensures accurate and precise dosing. The weighing accuracy is ±1g for a range of 100–250g; ±2g for 200–500g; and ±3g for 500–1000g.

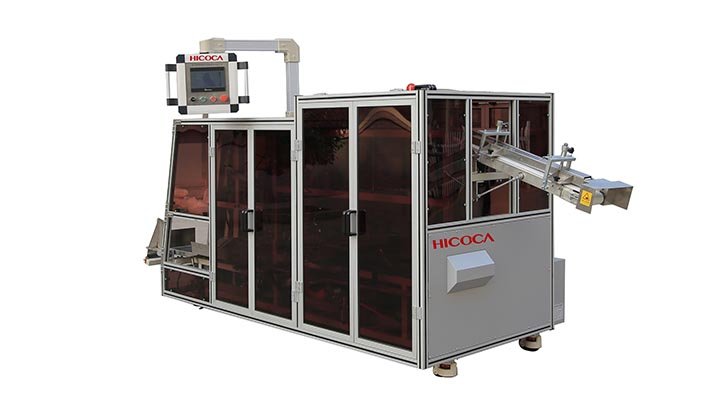

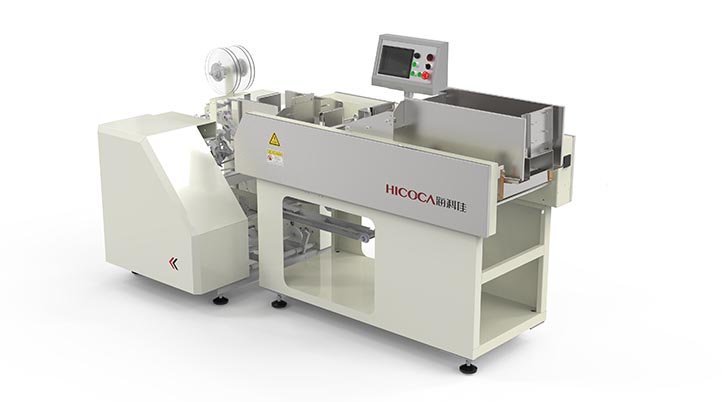

Packaging Machine
1
Automatic roll-film
packaging machine allows for easy switching between different product sizes (400-1000g), reducing labor costs and packaging material waste;
2
Reciprocating horizontal sealing: The reciprocating sealing knife design ensures a neat and aesthetically pleasing seal;
3
Electronic safety system prevents accidental cuts, protecting both equipment and personnel;
4
Empty bag detection function effectively prevents empty bags from being produced, saving on packaging material costs;
5
Single or dual weighing systems can be selected based on production capacity.

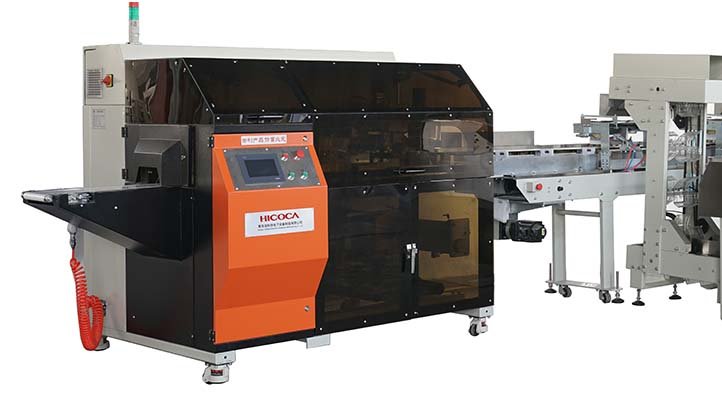

Model: HKJ.GSPKD-01
Product Highlights:
1
Adopts an internationally advanced bag-packing design, optimized for the characteristics of food product packaging; a leading-edge machine in China.
2
Features a unique single-station continuous product feeding mechanism, compact in size, with a simple and stable structure, enabling high-speed continuous product feeding and sorting, and offering easy operation and good compatibility.
3
Utilizes a scissor-type sealing mechanism for excellent sealing performance. The inverted output mechanism automatically pushes the packaged products onto the discharge tray, facilitating operation and inspection.
4
One unit of this equipment is required per packaging production line, requiring only one operator to manage it, achieving a daily output of approximately 40 tons and saving two labor positions.
This sealing machine for flat-bottomed bags fills a gap in the production line, offering stable operation, high sealing efficiency, and direct integration with the conveyor belt for automated packaging and palletizing, truly realizing intelligent production. Each packaging production line requires only one operator to manage the equipment, achieving a daily output of approximately 40 tons and saving two labor positions.

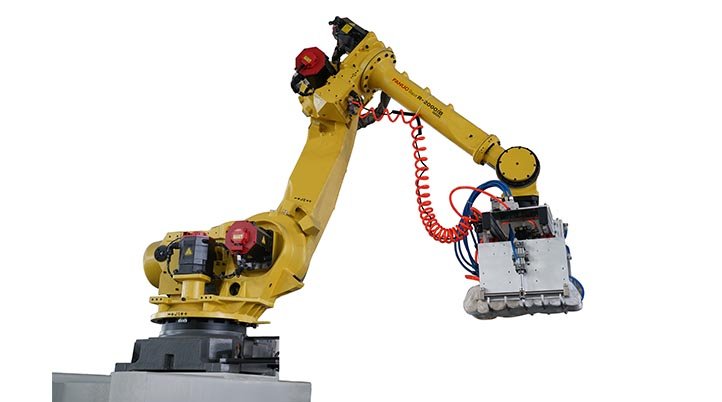

Palletizing Robot
Palletizing robots have a small footprint and are highly maneuverable; they offer high palletizing accuracy, stable operation, low failure rates, and are robust and durable; their flexible design allows them to simultaneously palletize products from two or more production lines; and they meet the palletizing needs for various products such as cardboard boxes, plastic drums, metal drums, woven bags, and plastic crates.
