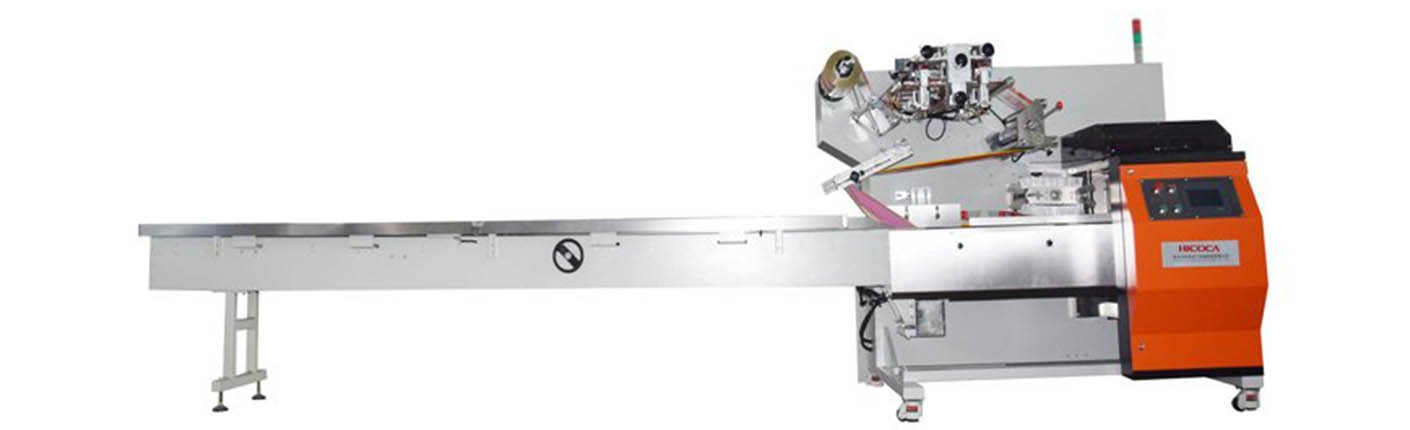

Top-fed Film Automatic 3D Bag Packaging Machine
Usage Environment Conditions
1
Site Requirements: Indoor use; the floor must be level, free from vibration and unevenness.
2
Floor Surface Requirements: Must be a hard, non-conductive floor surface (e.g., concrete, tiles, etc.).
3
Ambient Temperature: -5°C to 40°C
4
Relative Humidity: <75% RH, no condensation
5
Dust: No conductive dust
6
Gases: No flammable or explosive substances or gases; no corrosive gases that severely damage metal
7
Altitude: ≤ 1000 meters
8
Grounding Requirements: Independent, safe, and reliable grounding system
9
Power Supply Requirements: Stable power supply; voltage fluctuation should not exceed ±10%
10
Other Requirements: Measures must be taken to prevent rodents (such as rats) from entering the area.
Product Parameters
| Production Capacity | 20-80 ( bags/min) |
| Power Supply/Power | 220V/50Hz 7KW |
| Packaging Scope | L:80-400 W:70- 260 H:20-65 (mm) |
| Maximum Diameter Of Packaging Film | 350 (mm) |
| Maximum Width Of Packaging Film | 580 (mm) |
| Use A Gas Source | 0.6-0.7Mpa |
| Machine Dimensions | L6000 W1500 H1700 (mm) |
