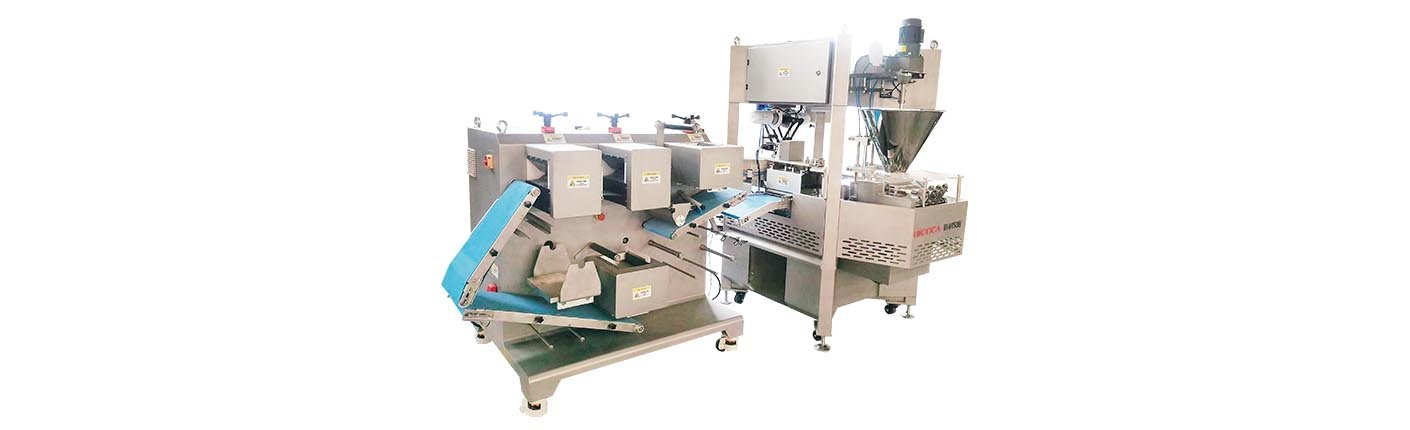

Intelligent Robotic Dumpling Production Line
The entire machine is made of SUS304 stainless steel, providing superior corrosion resistance.
The mold mounting mechanism utilizes a high-precision hollow rotary platform controlled by a high-torque servo motor, ensuring higher precision and more stable operation.
Both the platform movement and filling process are controlled by servo motors, enabling precise control for different products.
The machine uses high-quality, well-known brand components, guaranteeing precision and long-term reliability.
Product Parameters
| Production Speed | Power Supply Type | Total Power | Total Weight Of The Machine | Dimensions | Device Dimensions |
|---|---|---|---|---|---|
| 150-180 per minute | 3800V, 50HZ | 12.5KW | 1600kg | 3400*2850*2100 | Length 2535mm x Width 2555mm x Height 2260mm |

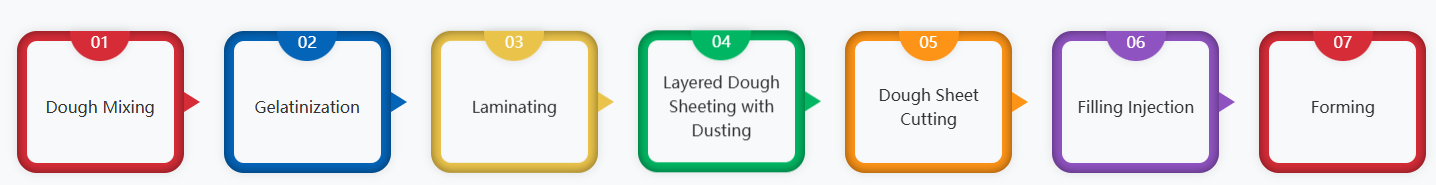

Process Flow
Core Single-Board Design Overview

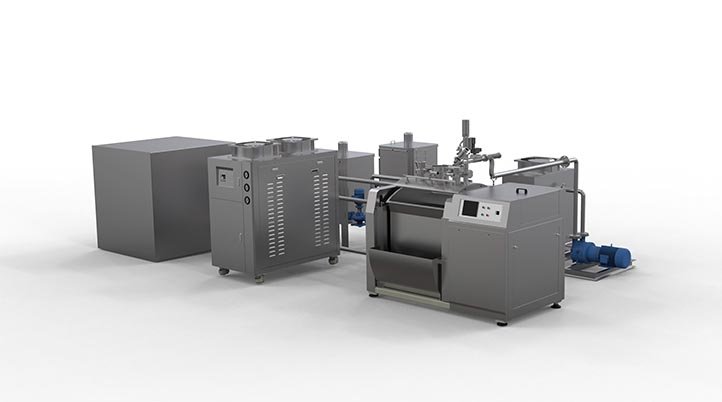

Vacuum Kneading Machine
Compared with atmospheric pressure kneading, vacuum kneading offers the following advantages:

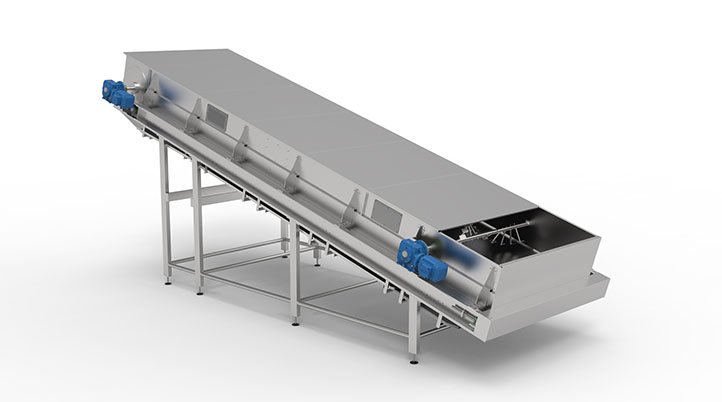

Dough Aging Machine
This machine incorporates the concept of dough resting into a mechanized process, with a conveyor belt feeding system ensuring a first-in, first-out flow of material.
The fully sealed design prevents moisture loss, maintaining optimal humidity and temperature, resulting in a more uniform and consistent dough texture.
The flour-dosing mechanism uses a spiral-shaped auger, synchronized with the conveyor belt speed, ensuring even distribution of flour particles and consistent dough consistency for uniform sheet production.

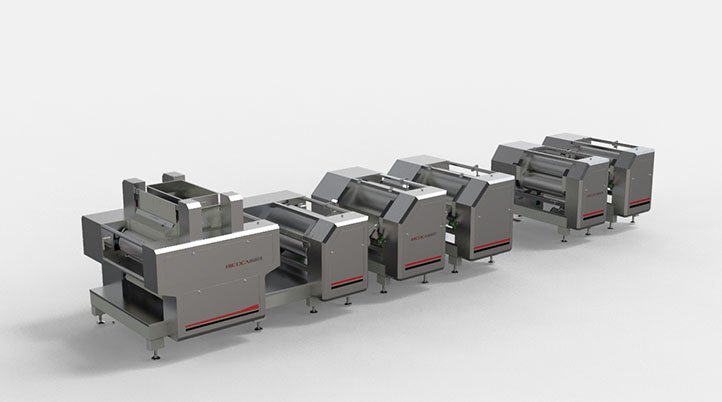

Laminating Machine
The rolling cylinders are made of high-hardness, high-chromium alloy steel, providing superior corrosion resistance and ensuring a long service life, resulting in a smooth and uniform surface finish. Safety protection devices guarantee safe operation, and the design facilitates easy cleaning, observation, and maintenance. Automatic adjustment is achieved through a combination of a worm gear reducer or screw jack, a servo motor and drive, a distance sensor, and a programmable controller.

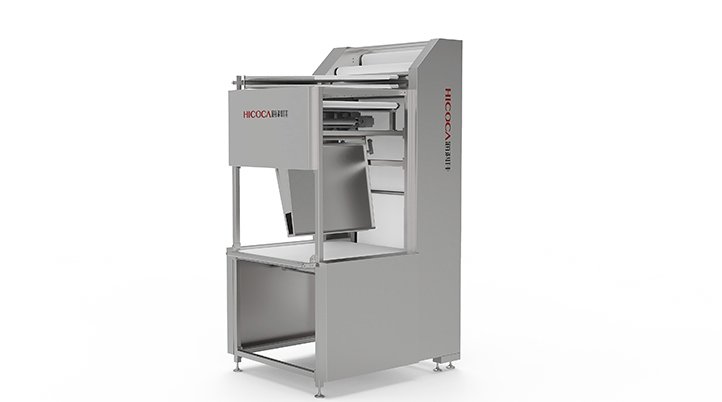

Dough Stacking Machine
The conveyor belts can change the direction of the dough sheet, and the dough folding mechanism can fold the dough. By coordinating the movement of the curved conveyor belt and the dough folding mechanism, the dough is folded and turned, achieving more thorough kneading and thus improving the texture of the processed pasta.

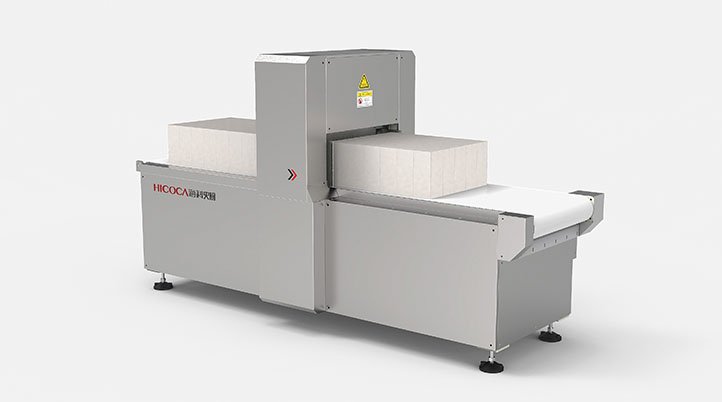

Dough Cutting Machine
The folded dough sheet is then cut and shaped using a stamping machine. The dimensions of the cutting tool can be adjusted according to the product size, and it can also be used to cut other similar products, such as dumpling wrappers.

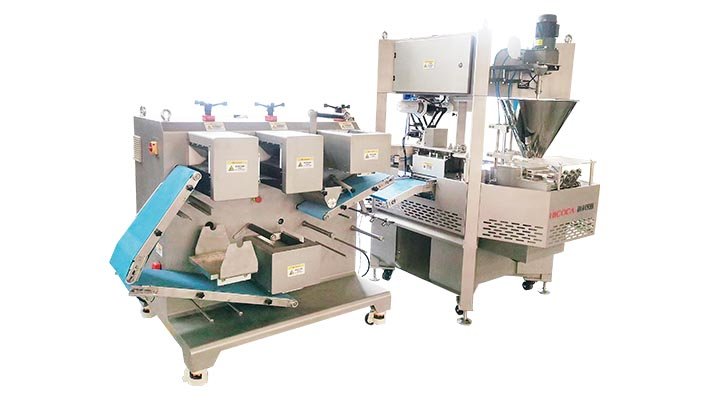

Intelligent Bionic Dumpling Maker
