Check weigher
Product introduction
This series check weigher is a kind of high speed and high precision online weight inspecting equipment, it's mainly used for various automatic assembly line and logistical conveyor system to check low or high weight deviation of the on-line products, then, to sort them. And it works with all kinds of packaging production line and conveying system.
It's applied to online detection of pharmaceutical, food, toys, hard-ware, chemical industry.
Features
High speed
High accuracy sensor and dual-core high-speed A/D modules, high speed, can be to 100 m/min.
High precision
Tracking zero automatic analysis and special processing technology. perfect to realize high precision.
Parameters
| Type: | HCW5020 | |
| Min dividing value: | 1g | |
| Max precision: | 0-1500g ±2g
1500-3000g ±5g |
|
| Max sorting speed : | 100pieces/min | |
| Belt dimension: | Part of feeding and weighing | 500mm（L）*200mm（W） |
| Remove part | 600mm（L）*200mm（W） | |
| Size of the machine： | 1600mm*650mm*1250mm | |
| Weight： | 80kgs / 150kgs | |
| Heigth of belt： | 850mm ,according customer | |
| Weighing range: | 5g ~ 3000g | |

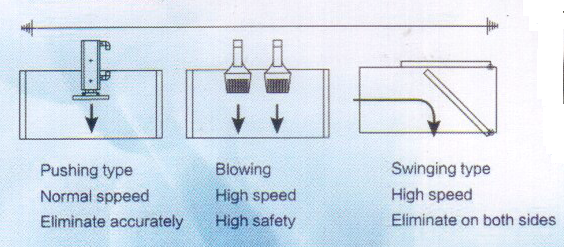

Sorting ways
Applications
HCWS series check weigher is a kind of high speed and high precision online weight inspecting equipment, it's mainly used for various automatic assembly line and logistical conveyor system to check low or high weight deviation of the on-line products, then, to sort them. And it works with all kinds of packaging production line and conveying system. It's applied to online detection of pharmaceutical, food, toys, hard-ware, chemical industry.
