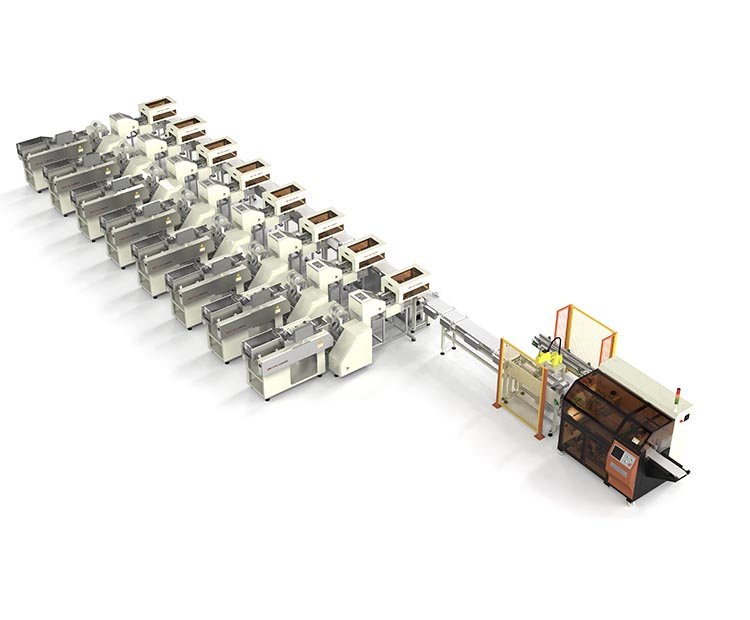

High-Speed Multi-Scale Bundling and Packaging Integrated Line
Model: GSCBJJKM 6/30
Key Technical Parameters
| Rated Voltage (V) | AC 220V |
| Frequency (Hz) | 50 |
| Rated Power (kW) | 13 |
| Air Consumption (L/min) | 20 |
| Weighing Accuracy (g) |
200g – 500g: ±2.0g (96% of cases)
500g – 1000g: ±3.0g (96% of cases)
|
| Weighing Speed (cycles/min) | 30 – 50 (per scale; varies based on product shape, quality, and target weight) |
| Packaging Specifications |
200 – 250g/bundle, 4 – 5 bundles/bag
1.75 – 150g/bundle, 4 – 5 bundles/bag
|
| Packaging Speed (bags/min) | 30 – 50 (varies based on product quality and package quantity) |
| Bundling Format | Single-bundle or double-bundle bundling |
| Equipment Dimensions (L×W×H) mm | 20,000 × 4,500 × 2,200 (based on an 8-scale configuration) |
Product Highlights
1
Utilizes high-speed weighing machines compatible with standard packaging machines and 3D bag packaging machines; designed to international standards.
2
Features an elevated design allowing unobstructed flow of personnel and materials, saving time on movement and enhancing workshop circulation efficiency.
3
Combines the advantages of standard multi-scale bundling lines and high-speed weighing machines, doubling overall efficiency.
4
Holds a national invention patent; represents a leading, high-end quantitative packaging line in the domestic market.
5
Offers flexible configuration, allowing the number of weighing machines to be adjusted according to production capacity requirements.
Application
This equipment is designed for the multi-bundle plastic packaging of long-format food products—such as loose dried noodles, spaghetti, and rice vermicelli—ranging from 180mm to 260mm in length. It executes the entire high-speed packaging process through a series of automated steps: weighing, bundling, lifting, conveying, sorting, grouping, feeding, film forming, and sealing/cutting.
